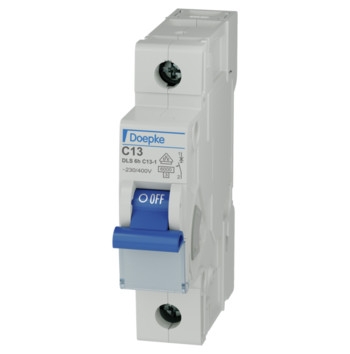

Cầu dao tự động Doepke MCB 1P, 10kA - 13A

Mã sản phẩm: DLS-09914202
  • Số cực: 1P
  • Dòng định mức In (A): 13A
  • Dòng ngắn mạch Icu (kA): 10 kA
  • Đường cong: C
  • Điện áp (V): 230/400V - 50/60Hz
  • Điện áp cách điện định mức Ui: 2kV
  • Điện áp chịu xung định mức Uimp: 4kV
  • Tiêu chuẩn: EN 60898-1, VDE 0641-11
  • Thương hiệu: Doepke
  • Xuất xứ: Germany
Giá bán lẻ đề xuất: 189.750₫


Circuit-breakers, one-pole, Characteristic C, 6A - 63A, 10kA, for commercial sector applications


The function of miniature circuit-breakers is to automatically cut off circuits to protect cables and connected devices. After being cut off, they can be switched back on manually without fuse inserts, for example, having to be replaced. All of our miniature circuit-breakers have a trip-free mechanism that guarantees reliable switch-off, even for mechanically blocked switch toggles for example. The DLS miniature circuit-breaker variant protects cables, lines and installation devices from overload and short-circuits as laid down in DIN VDE 0100. The variant comprises a large selection of different types for switching in residential and purpose-built buildings, and for industrial applications. Its compact design means the DLS miniature circuit-breaker provides maximum space for ease of wiring. The large clamping area and ability to use commercial wiring rails ensure simple installation. It is also possible to connect a number of additional devices such as operating current trip and auxiliary/fault sensors. The DLS variant for skilled trade is suitable with its rated switching capacity of 10 kA for distributor and final circuits. Switches with tripping characteristic C are optimised for power circuits with high inrush or peak currents.


Rated switching capacity 10 kA, screw terminals with strain-relief clamps with wide terminal cross-section range for rail and line wiring on both connection sides , special quick fastening for removal of multiple miniature circuit-breakers from the bottom or top interconnection, large, folding label window for a secure hold and protection of the label, use of conventional wiring rails, ON/OFF switch position indicator on the switch toggle, accessories retro-fittable on the right, labelling software free of charge


Quick fastening to mounting rail, any installation position


Suitable for use in power supplies for residential and purpose-built buildings or buildings for commercial use.


Technical Data




Number of poles

1P, 2P, 3P and 4P

Curve characteristic


Supply side

left or right


Load disconnect contact

Rated voltage (AC)

230 V, 400 V

Rated voltage (DC)

60 V

Rated current (AC)

6 A - 63A

Rated short-circuit current

10 kA

Rated insulation voltage

2 kV

Rated impulse withstand voltage

4 kV

Rated frequency

50 Hz (16.67 Hz ... 60 Hz)

Thiết bị điện bình dương Blue River  là đại lý phân phối thiết bị điện Doepke chất lượng cao, được nhập từ Germany, quý khách vui lòng liên hệ theo số 0705908868 để nhận được sự tư vấn và báo giá tốt nhất.
