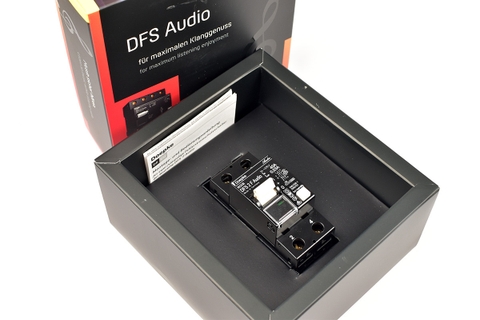

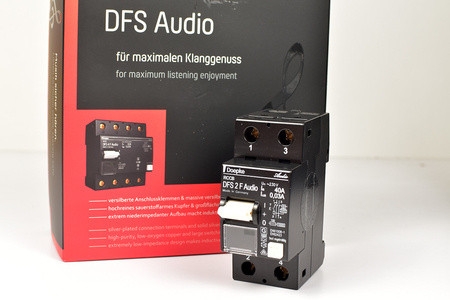

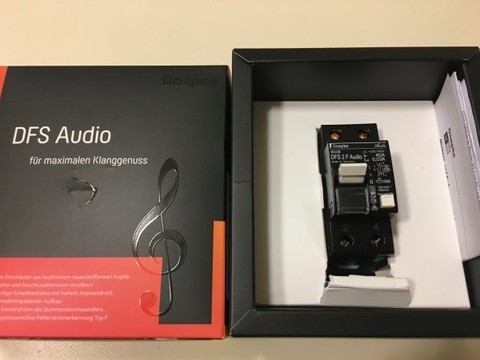

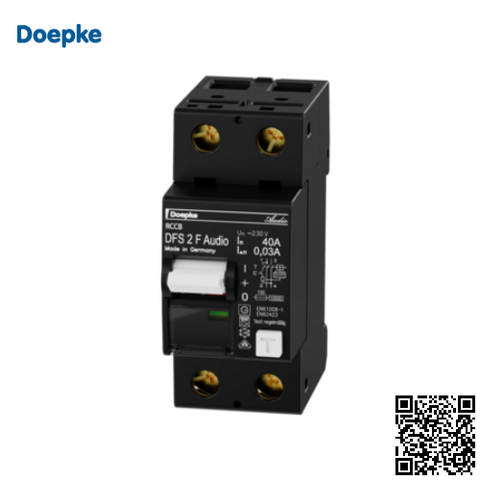

RCCB Âm Thanh DFS 2 AUDIO - 2P, 40A

Mã sản phẩm: 09134046

Residual current circuit-breaker DFS 2 040-2/0,03-F Audio

Residual current circuit-breakers, two-pole, 40A, 0,03 A, Type F, Audio, N left or right

  • sensitive to mixed frequencies, mains-voltage-independent
  • for audiophile applications
  • higher system availability: short-time delayed
  • silver-plated connection terminals
  • minimal power dissipation at each pole
  • VDE certified
  • Thương hiệu: Doepke
  • Xuất xứ: Germany
  • Datasheet
Giá bán lẻ đề xuất: 26.673.000₫


Residual current circuit-breakers, two-pole, 40 A, 0,03 A, Type F, Audio, N left or right


Residual current circuit-breakers (RCCB) switch the power supply off if dangerous high residual currents occur. DFS 2 are two-terminal residual current circuit-breakers for single-phase networks. In the standard design, the compact devices are just two module widths wide. They are available with many different residual current types and variants for rated currents up to 125 A. The large two-tier terminals can also accommodate large conductor cross-sections. The trip position of the multi-function toggle switch simplifies fault-finding. The free label software helps in the labelling process. Type F switches are mixed frequency sensitive. They protect against pulsating and AC residual currents as well as residual currents with mixed frequencies that differ from 50 Hz independent of the mains voltage. RCCB of the DFS Audio series are optimised for protecting electric circuits that are connected to high-quality audio systems, such as record players, network streamers, amplifiers or sound systems for theatres and cinemas. They have a low-impedance design to enable an unrestricted current flow and undisturbed sound quality.


Sensitive to AC residual currents and pulsating DC residual currents at the mains frequency (type A) as well as AC residual currents with multiple frequency components not equal to 50 Hz, high immunity against surge currents and mains-voltage-operated secondary current impulses , ideal for protecting high-quality audio components, optimised design for sound quality, e.g. silver-plated internal current conductors, silver-plated connection terminals etc, compact design for all rated currents, high short-circuit resistance, double-sided two-tier terminals for large conductor cross-section and busbar, switch position indicator, viewing window for labels, multifunction switch toggle with three positions: "on", "off" and "tripped", Neutral conductor position left or right


quick fastening to mounting rail, any installation position, supply from any direction


The Audio is primarily used in electric circuits with high-quality audiophile components, such as record players, CD players, network streamers, amplifiers, active loudspeakers or even sound systems for theatres or cinemas, Residual current type F ensures a high system availability due to its resistance to transient surge currents as well as the reliable detection of AC and pulsating residual currents with a rated frequency (50 Hz), even if other frequency components are present in the residual current, as may occur in modern audio devices with transformer or network parts.

Thiết bị điện bình dương Blue River  là đại lý phân phối thiết bị điện Doepke chất lượng cao, được nhập từ Germany, quý khách vui lòng liên hệ theo số 0705908868 để nhận được sự tư vấn và báo giá tốt nhất.
